12V DC Electric Micro Speed Reduction Gear Motor High Torque 22mm Planetary Gearbox
Product Details:
| Place of Origin: | China |
| Brand Name: | Donghui motor |
| Certification: | CE ROHS |
| Model Number: | DPG22-180 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | USD5.85-6.85pcs |
| Packaging Details: | carton |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs30days |
|
Detail Information |
|||
| Product Name: | Dc Planetary Gear Motor | Efficiency: | >75% |
|---|---|---|---|
| Material: | Metal | No-load Current: | 0.3A |
| No-load Speed: | 15-1000rpm | Noise: | <50dB |
| Reduction Ratio: | 3-100 | Size: | 22mm |
| Voltage: | 3-24V | Warranty: | 1 Year |
| Highlight: | Micro Speed Reduction Gear Motor,12V Speed Reduction Gear Motor,DC Gear Reduction Motor 22mm |
||
Product Description

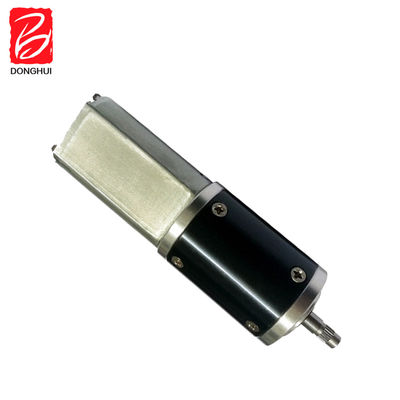

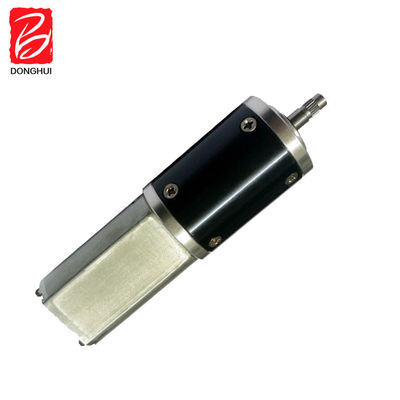

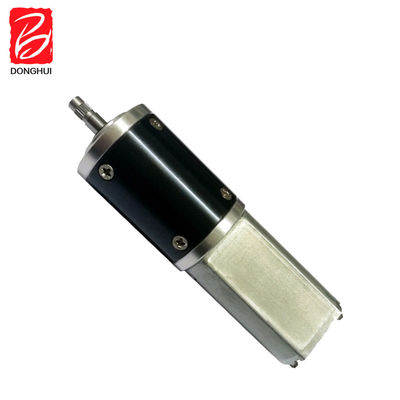

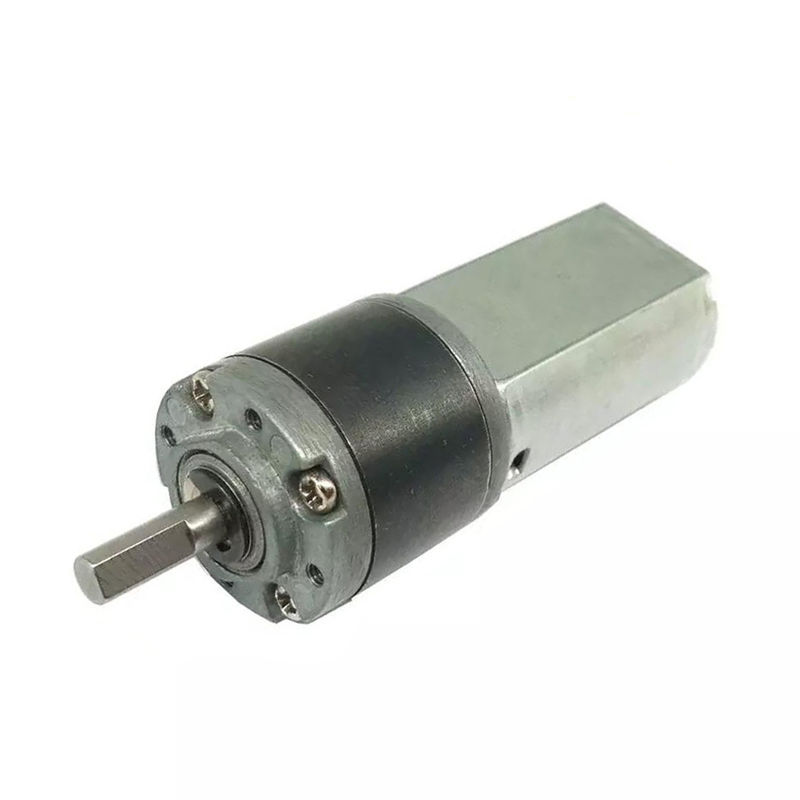

22mm planetary gearbox 12v dc planetary gear motor High Torque Electric Micro Speed Reduction Geared Motor
Motor Type: DC planetary gear motor
Item NO. DPG222-180
Voltage 3V~24V
Speed 15~1000RPM
Body Diameter:22MM
Planetary gearbox
Description:
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Drip-proof
Output Power: 3W
Voltage(V): 12V DC
Efficiency: IE 1
Motor dia.: 22mm
Gearbox dia.: 22mm
Gear ratio: 16-1296
OEM & ODM Service:Available
Gearmotor no load current(MA):100-120
Gearmotor rated load torque(gf.cm):720-52780
Gearmotor rated current(MA):350
Gearmotor rated load speed(rpm):418-5.1
Noise (DB):<55
Rotation:CW/CCW reversible
Customized: Accepted
Specification:
| Item | Dc Planetary gear motor DPG22-180 |
| Size | Diameter22mm |
| Working Voltage | 6V~24V |
| Speed | 15~1000RPM |
| Torque | 0.3-5kg.cm |
| Working Current | 55mA Max |
| Typical Current | 48mA |
| Lifetime | 200hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Note:Motor's voltage,speed,wire length,connector type can be customized
Typical application
Our products widely used in Robot, 3D pen and machine, Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →
cargo ready → balance/delivery → further cooperation
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund
when you place formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you
need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
