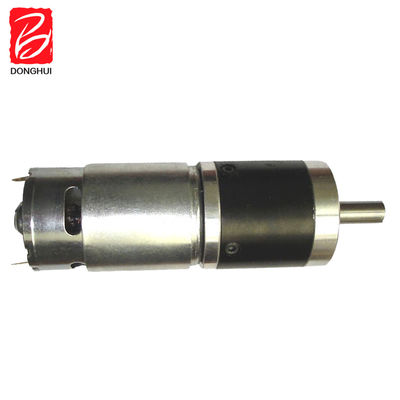

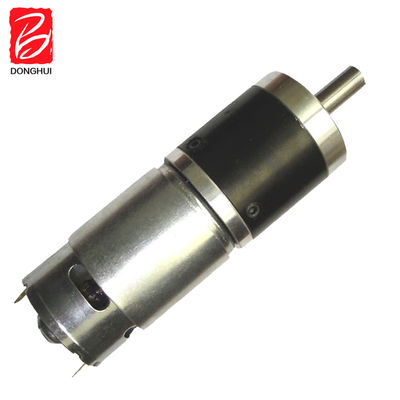

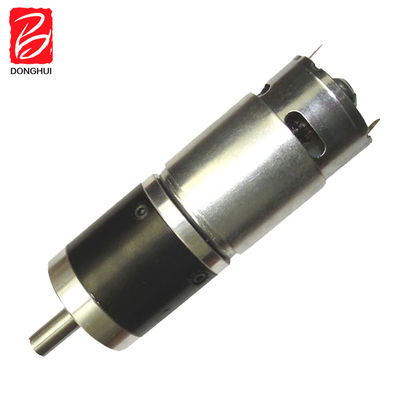

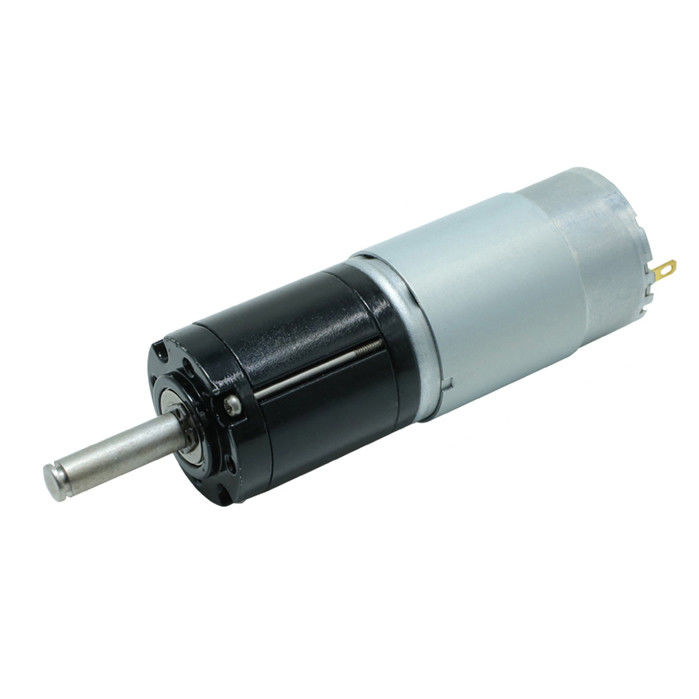

RS 395 Planetary DC Gear Motor 45 rpm 4W Dia 28mm Low Speed High Torque Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | Donghui motor |
| Certification: | CE ROHS |
| Model Number: | DPG28-395 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | USD9.85-11.25pcs |
| Packaging Details: | carton |
| Delivery Time: | 30days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs30days |
|
Detail Information |
|||
| Product Name: | Dc Planetary Gear Motor | Efficiency: | 50-80% |
|---|---|---|---|
| Noise: | <60dB | Power: | 3W-100W |
| Shaft Diameter: | 6mm | Shaft Length: | Customized |
| Shaft Type: | Straight/Hollow/Double | Speed: | 5-1000rpm |
| Torque: | 0.1-10N.m | Voltage: | 12V/24V |
| Warranty: | 1 Year | ||
| Highlight: | RS 395 Planetary DC Gear Motor,45 Rpm Low Speed High Torque Motor,28mm Low Speed High Torque Motor |
||
Product Description
Dia 28mm dc planetary gear motor low speed 45rpm 4w high torque 10kg cm rs395 dc planetary steel gear motor
Motor Type: DC Planetary gear motor
Item NO. DPG28-395
Voltage 6V~24V
Speed 15~500RPM
Working Current 5A Max
Body Diameter:28MM
Product Feature :
1.Widely used, economical and practical.
2.Light appearance and structure design.
3.The structure is relatively compact, the return gap is small, the precision is high, and the service life is long.
4.The price is a little expensive.
Description:
Planetary gear motor is a DC Motor with a Planetary gearbox or gearhead. The gearbox design is a planetary design, the gears working style is like the planetary running. It has sun gear, planetary gears and Ring Gear,
We produce planetary gearbox from 12mm to 45mm size , can match stepping motor and bldc motor , ratio can adjust from 1:3.7 to 1:3736. Our productions´features is high efficence ,low noise ,high precise and long life.
Specification:
| Item | Dc brush gear motor DPG28-395 |
| Size | Diameter28mm |
| Working Voltage | 6V~12V |
| Speed | 15~800RPM |
| Torque | 0.3-30kg.cm |
| Working Current | 85mA Max |
| Typical Current | 62mA |
| Lifetime | 200hours constant run |
| Certificate | CE,ROHS |
Typical Specification:
Note:Motor's voltage,speed,wire length,connector type can be customized
Typical application
Our products widely used in Robot, 3D pen and machine, Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
