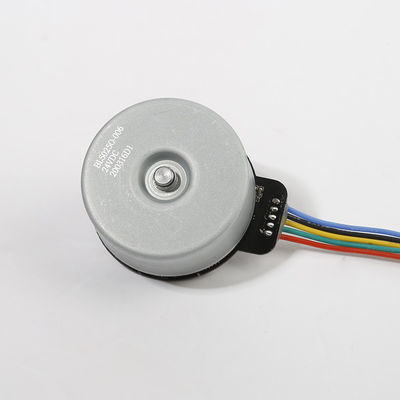

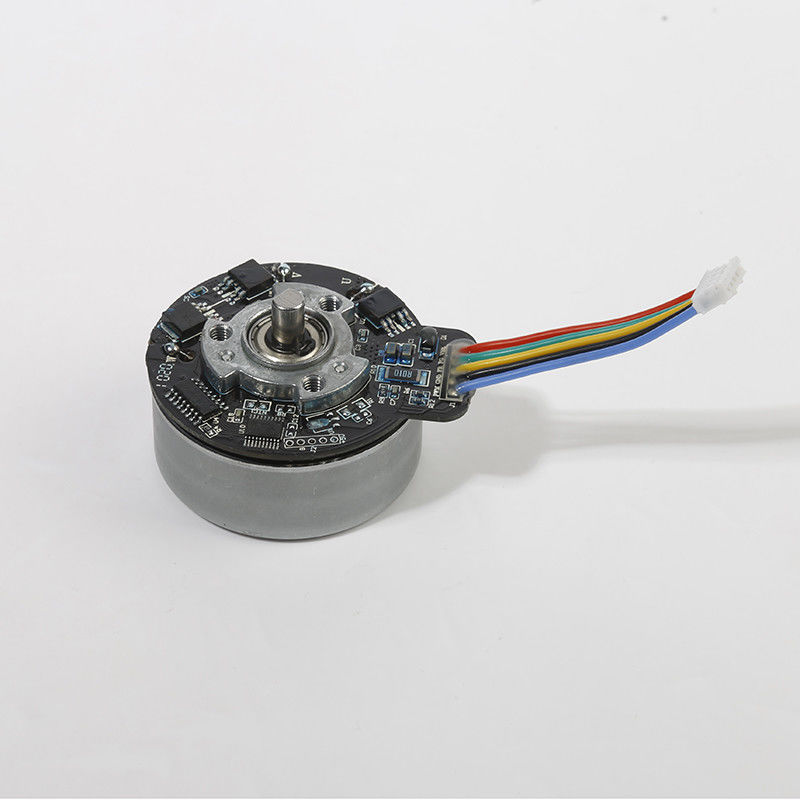

Big Torque 50mm Mini 24V Brushless Electric Motor 3800 RPM For Fascial Gun
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DBL5025O |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam Box/EPE+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 500,000 PCS/Month |
|
Detail Information |
|||
| Product Name: | 50mm Mini Brushless DC Motor | Output: | Approx 10W~60W |
|---|---|---|---|
| Efficiency: | 68.5% | Rated Voltage: | 24V |
| Speed(At Maximum Efficiency): | 3400RPM | Torque(At Maximum Efficiency): | 970g.cm |
| Continuous Current: | 1.7A | Input Power(At Maximum Efficiency): | 34W |
| Stall Torque: | 8278g.cm | Application: | Home Appliance, Cosmetic Instruments, Smart Home Devices, Massager |
| Highlight: | Mini 24V Brushless Electric Motor,24V Brushless Electric Motor 3800 RPM,Big Torque 50mm Brushless Motor |
||
Product Description
Big Torque 50mm 24V 3800RPM Brushless Electric Motor For Fascial Gun Mini Brushless Motor
Industry-specific Attributes:
Low Speed (RPM) 3400 RPM
Continuous Current 1.7A
Quick Detail:
50mm Brushless DC Motor
High Efficiency 68.5%
Output (At maximum efficiency) 34W
Low Speed 3400 RPM
Voltage Operating Range 8V~26.4V
Stall Torque 8278g.cm
Weight 190g
1 Year Warranty
Typical Application For Fascial Gun
Data details can be customized as customers' request
Specification
| Model | DBL5025O |
| Size | Diam 50mm * L 23.5mm |
| Voltage | 24V |
| Load Speed(At max efficiency) | 3400 RPM |
| Torque(At max efficiency) | 970g.cm |
| Current(At max efficiency) | 1.7A |
| Output Power(At max efficiency) | 34W |
| Stall Torque | 8278g.cm |
| Noise | 25db |
| Working Temperature | -10℃ ～ +80℃(25℃best) |
| Life span | To be estimated as the data details |

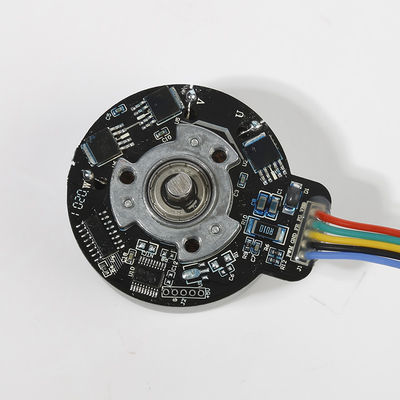

Motor Terminations
| No. | Pin Arrangement |
| 1 | VCC |
| 2 | FG |
| 3 | CW / CCW |
| 4 | GND |
| 5 | PWM |
Features of 50mm Brushless DC motor
The 50mm brushless dc motor boasts a high efficiency of 68.5% and an output of 34W at maximum efficiency. It runs at a low speed of 3400 RPM and has a voltage operating range of 8V to 26.4V. The motor also features a stall torque of 8278g.cm and a weight of 190g. Additionally, it comes with a 1-year warranty and is typically used for fascial guns. Customers can request for customized data details.
More Brushless DC Motors
Application:
The brushless dc motor are widely used in various fields, including Home Appliance, Cosmetic Instrument, Smart Home, Fascial Gun,Medical Equipment,etc.
Packaging
Packing:Foam Box / EPE + Export Carton
Delivery:
Shipping Time:5-7 working days for samples.15-25 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
1.What is a Brushless DC Motor?
A: The brushless DC motor is a type of electric motor that uses permanent magnets and electronic commutation to convert electrical energy into mechanical energy. They eliminate the need for brushes and commutators, which are commonly found in brushed DC motors.
2.How does a Brushless DC Motor work?
A: Brushless DC motors work by using an electronic controller to commutate the motor's stator coils. The controller senses the position of the rotor and switches the coils' polarity accordingly, causing the rotor to rotate. The controller can also regulate the speed by varying the amount of current sent to the coils.
3.What are the advantages of Brushless DC Motors?
A: Brushless DC motors offer several advantages over brushed DC motors. These include: higher efficiency, longer lifespan, lower maintenance requirements, quieter operation, and the ability to operate over a wider range of speeds.
4.What are the common applications for Brushless DC Motors?
A: Brushless DC motors are commonly used in a variety of applications where high efficiency and reliability are required, including: household appliances, pumps and fans, electric vehicles, industrial automation, and medical equipment.
5.What is the difference between a Brushless DC Motor and a Brushed DC Motor?
A: Brushless DC motors eliminate the need for brushes and commutators by using electronic commutation instead. This allows them to operate more efficiently and with lower maintenance requirements than brushed DC motors.
6.What is meant by 'torque density' in Brushless DC Motors?
A: Torque density in brushless DC motors refers to the amount of torque produced per unit volume of the motor. It is a measure of how powerful a motor is for its size and is an important factor in selecting a brushless DC motor for a specific application.
7.What is the role of Hall-effect sensors in Brushless DC Motors?
A: Hall-effect sensors are used in brushless DC motors to sense the position of the rotor and provide feedback to the electronic controller. The controller uses this feedback to commutate the motor's coils properly and achieve smooth rotation of the rotor.
8.What are the maintenance requirements for Brushless DC Motors?
A: Brushless DC motors require relatively low maintenance compared to brushed DC motors. Typical maintenance tasks may include regular cleaning and filtering of the motor's internal components, replacement of wear-prone parts like bearings and belts, and checking electrical connections for tightness and corrosion. However, specific maintenance requirements depend on the application and type of brushless DC motor being used.
9.How long is the delivery ,producing and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
10.How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →cargo ready → balance/delivery → further cooperation
