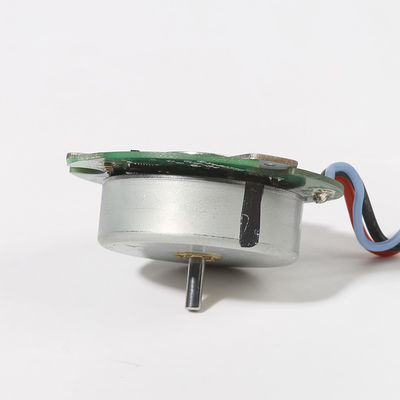

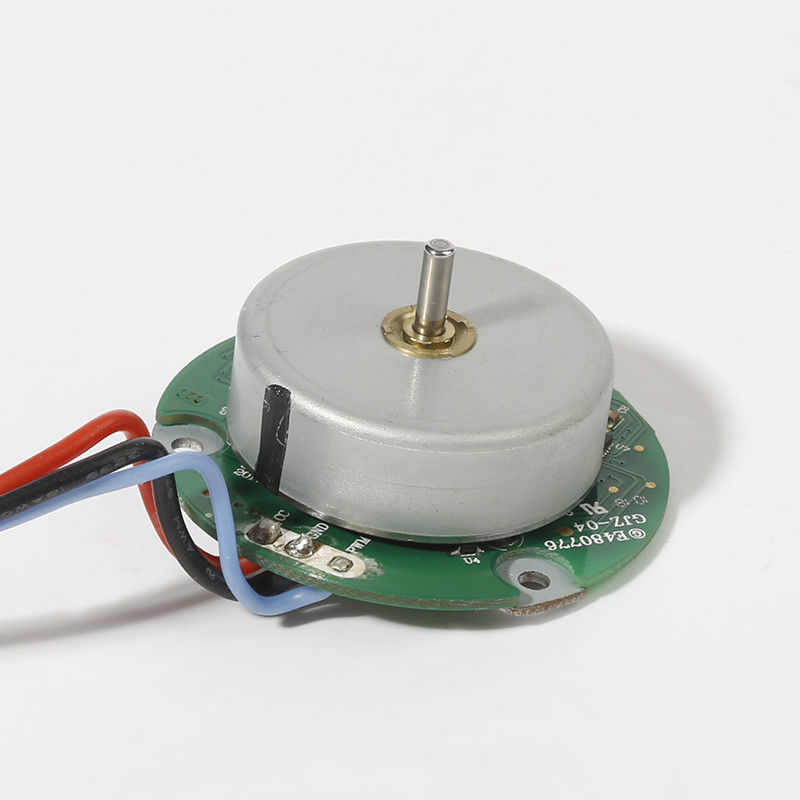

High Speed BLDC Brushless DC Motor 37mm Vacuum Cleaner Electric Motor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DBL3717O |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam Box+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 500,000 PCS/Month |
|
Detail Information |
|||
| Motor Type: | 37mm Brushless DC Electric Motor | Efficiency: | 65%~85% |
|---|---|---|---|
| Dimension: | 37mm * L 17mm | Threaded Hole: | 2-M3 |
| Rated Voltage: | 8V~26V | Speed(Max Efficiency): | 20481RPM |
| Current(Max Efficiency): | 2.61 A | Torque(Max Efficiency): | 253.4g.cm |
| Output Power(Max Efficiency): | 53.24W | Stall Torque: | 2111.9g.cm |
| Highlight: | BLDC Brushless DC Motor,High Speed Brushless DC Motor,37mm Vacuum Cleaner Electric Motor |
||
Product Description
37mm High Speed BLDC Brushless DC Motor For Vacuum Cleaner Electric Motor
Industry-specific Attributes:
| Speed(Max Efficiency) | 20481rpm |
| Current(Max Efficiency) | 2.61A |
| Efficiency | 65%~85% |
Quick Detail:
37mm Brushless DC Electric Motor
High Speed
High Efficiency
Long Life Span
Low Noise
Rated Voltage 12V~24V
Motor Rotation(CW/CCW)
Permanent Magnet
Ball Bearing or Oil Bearing Optional
1 Year Warranty
ODM,OEM Service
Typical Applicatiom For Vacuum Cleaner
Specification
| Model | DBL3717O |
| Size | Diam 37mm * L 17mm |
| Rated Voltage | 12V~24V DC |
| Speed(Max efficiency) | 20481rpm |
| Torque(Max efficiency) | 253.4g.cm |
| Stall Torque | 2111.9g.cm |
| Shaft Diameter | 3mm |
| Efficiency | 65~85% |
| Ball Bearing or Oil Bearing | Customized as request |
| Direction of Rotation | CCW & CW |
| Noise | 45db |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
| Lifespan of DBL3717O | Based on actual measurement |

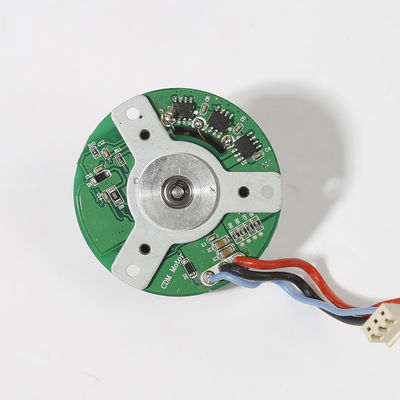

Motor Terminations
| No. | Pin Arrangement |
| 1 | PWM |
| 2 | FG |
| 3 | VCC |
| 4 | GND |
Features 37mm Brushless Electric Motor
The 37mm Brushless DC Electric Motor is designed for high-speed operation, boasting high efficiency and a long lifespan. It operates quietly, thanks to its low noise level. This motor has a rated voltage range of 12V to 24V and can rotate in both clockwise and counterclockwise directions. It features a permanent magnet, ensuring consistent performance, and offers the flexibility of choosing between a ball bearing or an oil bearing setup.
This motor comes with a one-year warranty, providing peace of mind in terms of reliability. Additionally, we offer ODM and OEM services, catering to specific needs and requirements. A typical application for this motor is in vacuum cleaners, where its compact size and powerful performance make it an ideal choice for efficient cleaning.
Application:
The Brushless dc motors are widely used in various fields, including personal care, household appliances, power tools, commercial equipment, medical equipment,etc. They are used as drive motors in these scenarios, providing high efficiency, high precision, and long life, exhibiting excellent performance.
Packaging
Packing:Foam Box+ Export Carton
Delivery:
Shipping Time:5-7 working days for samples.15-25 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are the manufacturer with 16 years’ experiences.
Q2: What’s your main products ?
A: Dia12-46mm dc motor,dc gear motor,brushless dc motor,planetary gear motor,high voltage dc motor,coreless motor.
Q3: What’s the main usage of your products ?
A: Our products are widely used in aviation,tools,medical,robotics,automation,Security doors,DMS,and other fields.
Q4: Do you accept OEM/ODM ?
A: We only accept ODM. Our R&D team have six experienced engineers. Tell us your needs, we can make it.
Q5: What I need to provide if I want to make a customized order ?
A: Please kindly tell us the voltages,speed,torque and overall dimension.
Q6: What if I don’t know the above data ?
A: Please tell us the usage of the product you want, we will give you professional advice.
Q7: How about the sample order ?
A: Samples are available. The extra fees due to the model type.
Q8: What’s the payment term ?
A: Payment by T/T or L/C, other payment methods are also acceptable . Sample order should be 100% prepaid. For bulk order, 50% deposit, the balance paid before shipping.
Q9: Which shipping way is available ?
A: Sample or small order by DHL,UPS,FedEx. Bulk order by Air or by Sea.
Q10: How long is the delivery time ?
A: Sample order takes 7-15 workdays. Bulk order takes 25-30 workdays.
