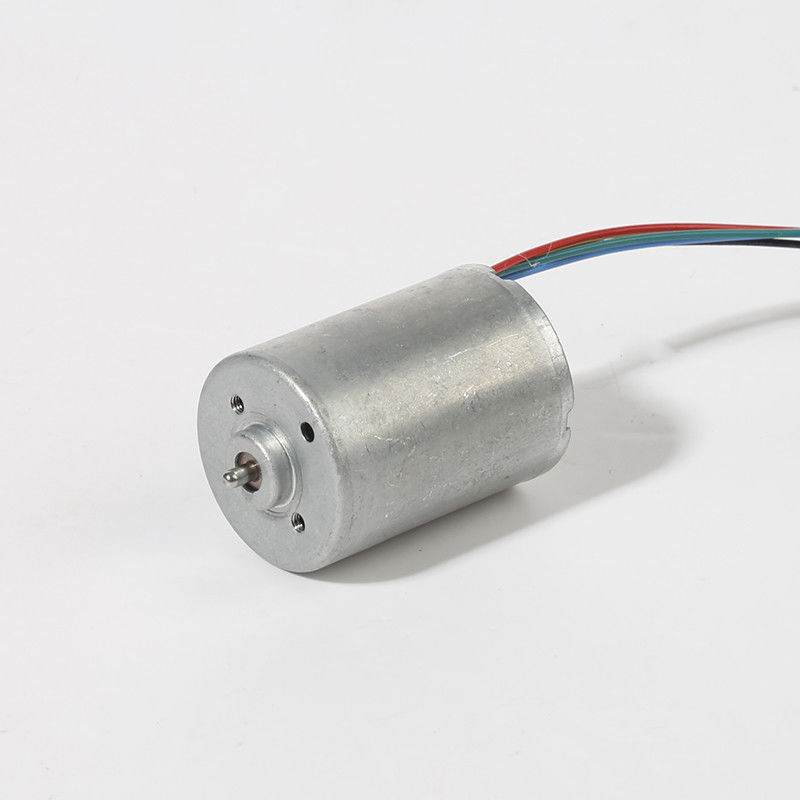

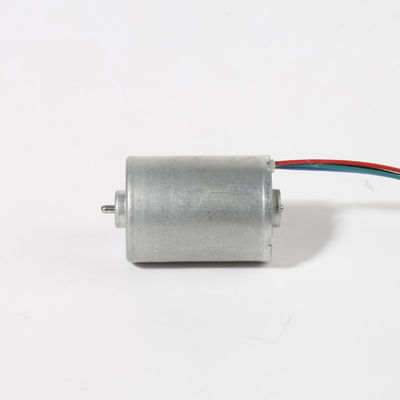

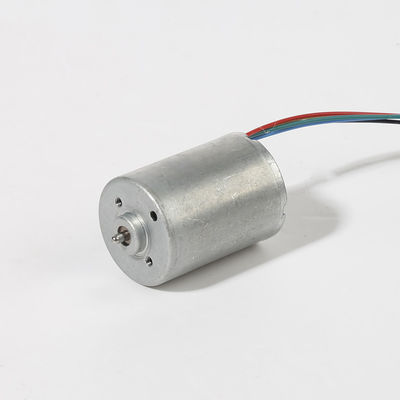

18V 5555RPM Brushless DC Motor 36mm BLDC Electric Motor With Inner Rotor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | ROHS CE |
| Model Number: | DBL3650I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Foam Box+Export Carton |
| Delivery Time: | 5~15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 500,000 PCS/Month |
|
Detail Information |
|||
| Product Name: | 36m Brushless Electric Motor | Dimension: | 36mm * 50mm |
|---|---|---|---|
| Shaft Diameter: | 4mm | Threaded Hole: | 2-M3 |
| Output: | Approx 5W~40W | Rated Voltage: | 18V |
| Speed(Max Efficiency): | 5555rpm | Current(Max Efficiency): | 1.55A |
| Torque(Max Efficiency): | 305.9g.cm | Power(Max Efficiency): | 17.43W |
| Stall Torque: | 1799.5g.cm | ||
| Highlight: | 18V Brushless DC Motor,Brushless DC Motor 36mm,18V BLDC Electric Motor |
||
Product Description
36mm BLDC Electric Motor 18V 5555RPM Brushless DC Motor With Inner Rotor For Electric Toy
Quick Detail:
Brushless DC Electric Motor
Inner Rotor
Motor Terminations:6 Pins
Rated Voltage 12~24V
Controllable Motor Rotation
Custom Ball Bearing or Oil Bearing
High Torque
Low Noise
Long Lifespan Based On Actual Measurement
ODM,OEM Service
Typical Application Electric Toy,Home Appliances
Specification
| Model | DBL3650I |
| Size | Diam 36mm * L 50mm |
| Rated Voltage | 18V DC |
| Speed(Max efficiency) | 5555rpm |
| Torque(Max efficiency) | 305.9g.cm |
| Stall Torque | 1799.5g.cm |
| Shaft Diameter | 4mm |
| Efficiency | 65%-85% |
| Ball Bearing or Oil Bearing | Can be customized |
| Direction of Rotation | CCW & CW |
| Noise | 35db |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
| Lifespan | Based on actual measurement |
Motor Terminations
| No. | Pin Arrangement |
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |
| 6 | BRAKE |
Features of Brushless DC Electric Motor
The brushless DC electric motor features an inner rotor design, providing high torque and efficient performance. The motor terminals are 6 pins, suitable for various applications. The rated voltage range of 12 to 24V allows for flexibility in power supply requirements. The motor rotation can be controlled, adjusting the speed and direction of rotation as needed. Custom bearings, such as ball bearings or oil bearings, can be selected based on specific requirements. The motor offers high torque, low noise, and a long lifespan, as determined by actual measurements. ODM and OEM services are available for tailored solutions, and the typical applications include electric toys and home appliances.
Application:
The Brushless dc motors are widely used in various fields, including personal care, household appliances, power tools, commercial equipment, medical equipment,etc. They are used as drive motors in these scenarios, providing high efficiency, high precision, and long life, exhibiting excellent performance.
Packaging
Packing:Foam Box+ Export Carton
Delivery:
Shipping Time:5-7 working days for samples.15-25 working days for bulk order.
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
1.What is a Brushless DC Motor?
A: The brushless DC motor is a type of electric motor that uses permanent magnets and electronic commutation to convert electrical energy into mechanical energy. They eliminate the need for brushes and commutators, which are commonly found in brushed DC motors.
2.How does a Brushless DC Motor work?
A: Brushless DC motors work by using an electronic controller to commutate the motor's stator coils. The controller senses the position of the rotor and switches the coils' polarity accordingly, causing the rotor to rotate. The controller can also regulate the speed by varying the amount of current sent to the coils.
3.What are the advantages of Brushless DC Motors?
A: Brushless DC motors offer several advantages over brushed DC motors. These include: higher efficiency, longer lifespan, lower maintenance requirements, quieter operation, and the ability to operate over a wider range of speeds.
4.What are the common applications for Brushless DC Motors?
A: Brushless DC motors are commonly used in a variety of applications where high efficiency and reliability are required, including: household appliances, pumps and fans, electric vehicles, industrial automation, and medical equipment.
5.What is the difference between a Brushless DC Motor and a Brushed DC Motor?
A: Brushless DC motors eliminate the need for brushes and commutators by using electronic commutation instead. This allows them to operate more efficiently and with lower maintenance requirements than brushed DC motors.
6.What is meant by 'torque density' in Brushless DC Motors?
A: Torque density in brushless DC motors refers to the amount of torque produced per unit volume of the motor. It is a measure of how powerful a motor is for its size and is an important factor in selecting a brushless DC motor for a specific application.
7.What is the role of Hall-effect sensors in Brushless DC Motors?
A: Hall-effect sensors are used in brushless DC motors to sense the position of the rotor and provide feedback to the electronic controller. The controller uses this feedback to commutate the motor's coils properly and achieve smooth rotation of the rotor.
8.What are the maintenance requirements for Brushless DC Motors?
A: Brushless DC motors require relatively low maintenance compared to brushed DC motors. Typical maintenance tasks may include regular cleaning and filtering of the motor's internal components, replacement of wear-prone parts like bearings and belts, and checking electrical connections for tightness and corrosion. However, specific maintenance requirements depend on the application and type of brushless DC motor being used.
9.How long is the delivery ,producing and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
10.How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →cargo ready → balance/delivery → further cooperation
