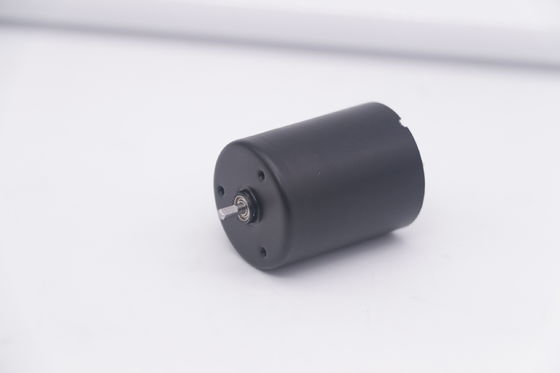

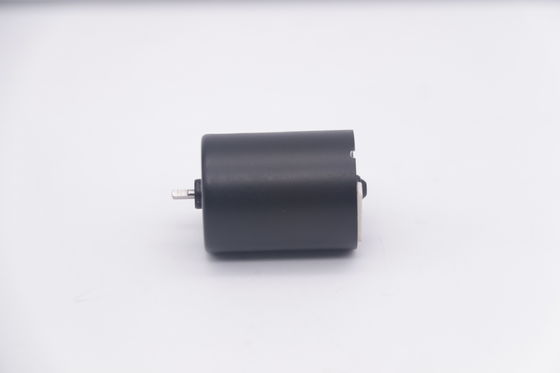

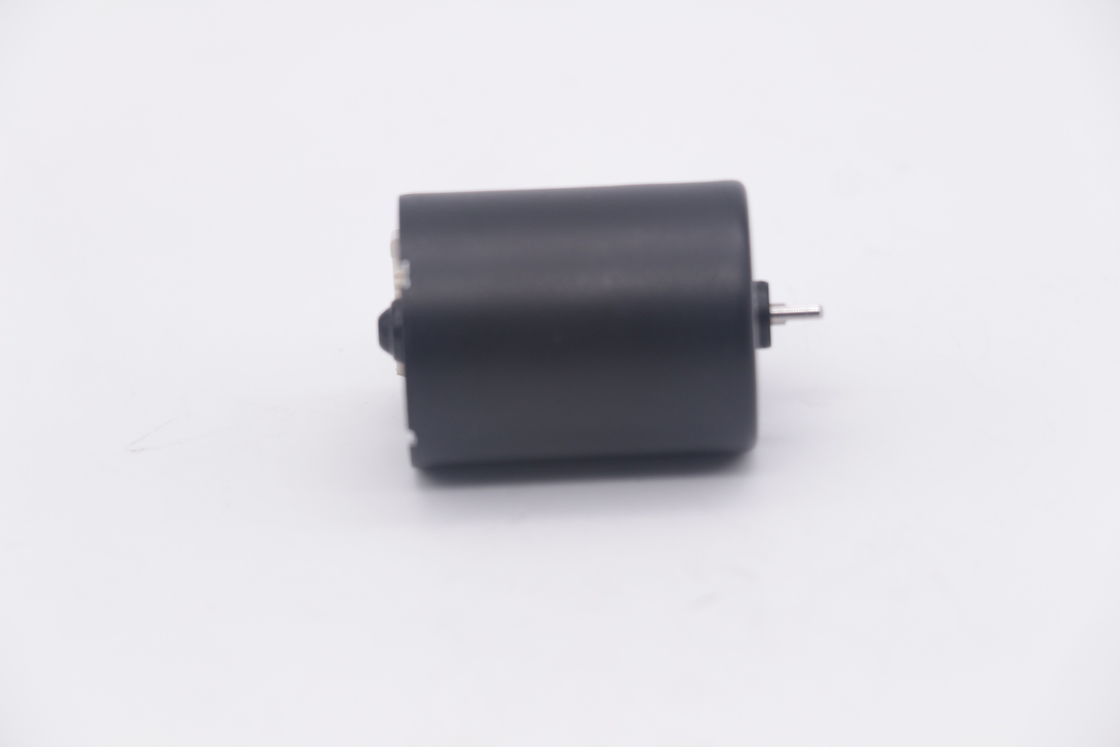

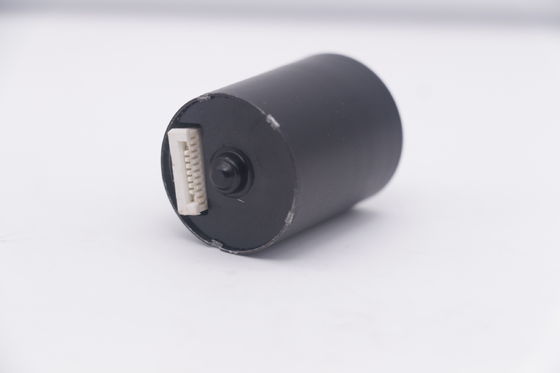

High Efficiency 80%~90% 24mm BLDC Brushless DC Motor DC Brushless Fan Motor 12V
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | DH Motor |
| Certification: | CE/UL/CCC/ROHS |
| Model Number: | DBL2430I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Foam Box+ Export Carton |
| Delivery Time: | 10~25 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000PCS/Month |
|
Detail Information |
|||
| Motor Type: | DBL2430I Brushless DC Motor | Body Diameter: | 24mm |
|---|---|---|---|
| Body Length: | 30mm | Shaft Diameter: | 2mm |
| Power: | 5.37W (At Maximum Efficiency) | Voltage: | 24V |
| Speed: | 9737RPM | Stall Current: | 1.322A |
| Stall Torque: | 324.1g.cm | Noise Level: | 50dB |
| Lifespan: | 10000~20000H | Rotation Direction: | CW/CCW |
Product Description
High Efficiency 80%~90% 24mm BLDC Brushless DC Motor DC Brushless Fan Motor 12V
Quick Detail:
High Efficiency Power
Long Life Span 10000~20000H
Built-in Driver
Controllable motor rotation
Permanent Magnet
Ball Bearing & Oil Bearing Option Available
Low Noise
1 Year Warranty
ODM,OEM Service Available
Features:
Brushless DC motors are designed with high-efficiency power, ensuring maximum performance while using minimum energy. They have a long lifespan and are suitable for long-term use due to the use of integrated drivers, which simplify installation and ensure optimal performance throughout the product's lifecycle.
Brushless DC motors feature controllable motor rotation, which allows for precise control over speed and direction. The use of permanent magnets provides maximum torque and efficiency, ensuring smooth operation. The product has options for ball bearing and oil bearing, allowing for greater versatility in different applications. The low noise design makes it suitable for use in a wide range of environments, from offices to residential settings.
Specification
| Model | DBL2430I |
| Size | Diam 24mm * L 30mm |
| Rated Voltage | 5V~26V DC (Customized) |
| Speed | 5000rpm~20000rpm (suggested) |
| Rated Torque | 40~100 g.cm |
| Power | 2~6W (Max Efficiency) |
| Shaft Diameter | 2mm |
| Power Efficiency | >90% |
| Ball Bearing or Oil Bearing | Can be available as customized |
| Direction of Rotation | CCW / CW |
| Noise | 50db |
| Working Temperature | -10℃ ～ +70℃(25℃best) |
| Life span | 10000~20000hrs(Based on the actual operation of the motor) |
Application:
Our brushless dc motors are widely used in Vacuum cleaners, household appliances, personal care, commercial equipment, medical equipment and other occasions that require drive control.
Packaging & Delivery
Packaging:Foam Box+ Export Carton
Delivery:
Shipping Time:5-7 working days for samples.10~15 Working days for bulk order
Shipping Channel:We can check the shipping fee and channel with our agents if needed.
FAQ
1.What is a Brushless DC Motor?
A: The brushless DC motor is a type of electric motor that uses permanent magnets and electronic commutation to convert electrical energy into mechanical energy. They eliminate the need for brushes and commutators, which are commonly found in brushed DC motors.
2.How does a Brushless DC Motor work?
A: Brushless DC motors work by using an electronic controller to commutate the motor's stator coils. The controller senses the position of the rotor and switches the coils' polarity accordingly, causing the rotor to rotate. The controller can also regulate the speed by varying the amount of current sent to the coils.
3.What are the advantages of Brushless DC Motors?
A: Brushless DC motors offer several advantages over brushed DC motors. These include: higher efficiency, longer lifespan, lower maintenance requirements, quieter operation, and the ability to operate over a wider range of speeds.
4.What are the common applications for Brushless DC Motors?
A: Brushless DC motors are commonly used in a variety of applications where high efficiency and reliability are required, including: household appliances, pumps and fans, electric vehicles, industrial automation, and medical equipment.
5.What is the difference between a Brushless DC Motor and a Brushed DC Motor?
A: Brushless DC motors eliminate the need for brushes and commutators by using electronic commutation instead. This allows them to operate more efficiently and with lower maintenance requirements than brushed DC motors.
6.What is meant by 'torque density' in Brushless DC Motors?
A: Torque density in brushless DC motors refers to the amount of torque produced per unit volume of the motor. It is a measure of how powerful a motor is for its size and is an important factor in selecting a brushless DC motor for a specific application.
7.What is the role of Hall-effect sensors in Brushless DC Motors?
A: Hall-effect sensors are used in brushless DC motors to sense the position of the rotor and provide feedback to the electronic controller. The controller uses this feedback to commutate the motor's coils properly and achieve smooth rotation of the rotor.
8.What are the maintenance requirements for Brushless DC Motors?
A: Brushless DC motors require relatively low maintenance compared to brushed DC motors. Typical maintenance tasks may include regular cleaning and filtering of the motor's internal components, replacement of wear-prone parts like bearings and belts, and checking electrical connections for tightness and corrosion. However, specific maintenance requirements depend on the application and type of brushless DC motor being used.
9.How long is the delivery ,producing and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
10.How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →cargo ready → balance/delivery → further cooperation
